Blue Sea Systems  |  Barcode: 632085600525

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black [6005200] 0.6 lb

$35.99 $39.72
Shipping calculated at checkout.

Care information

Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.

Delivery and Shipping

We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!

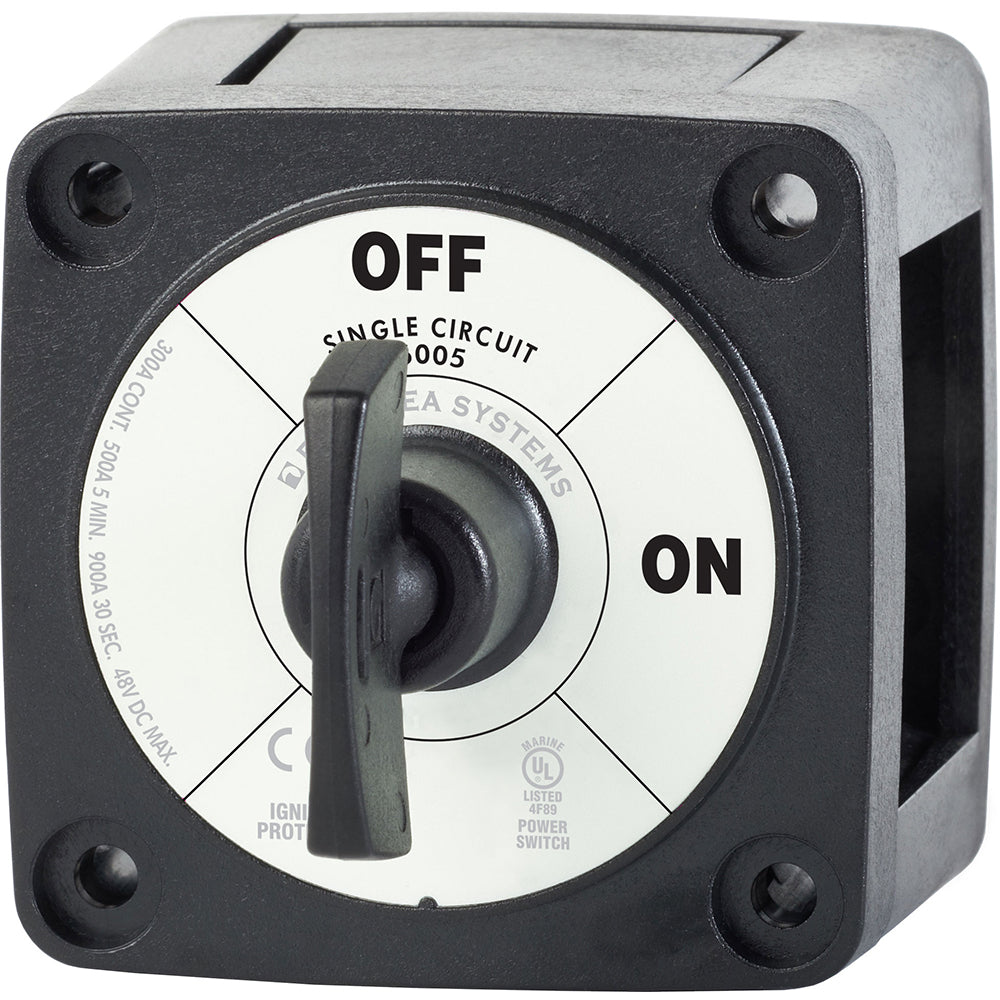

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

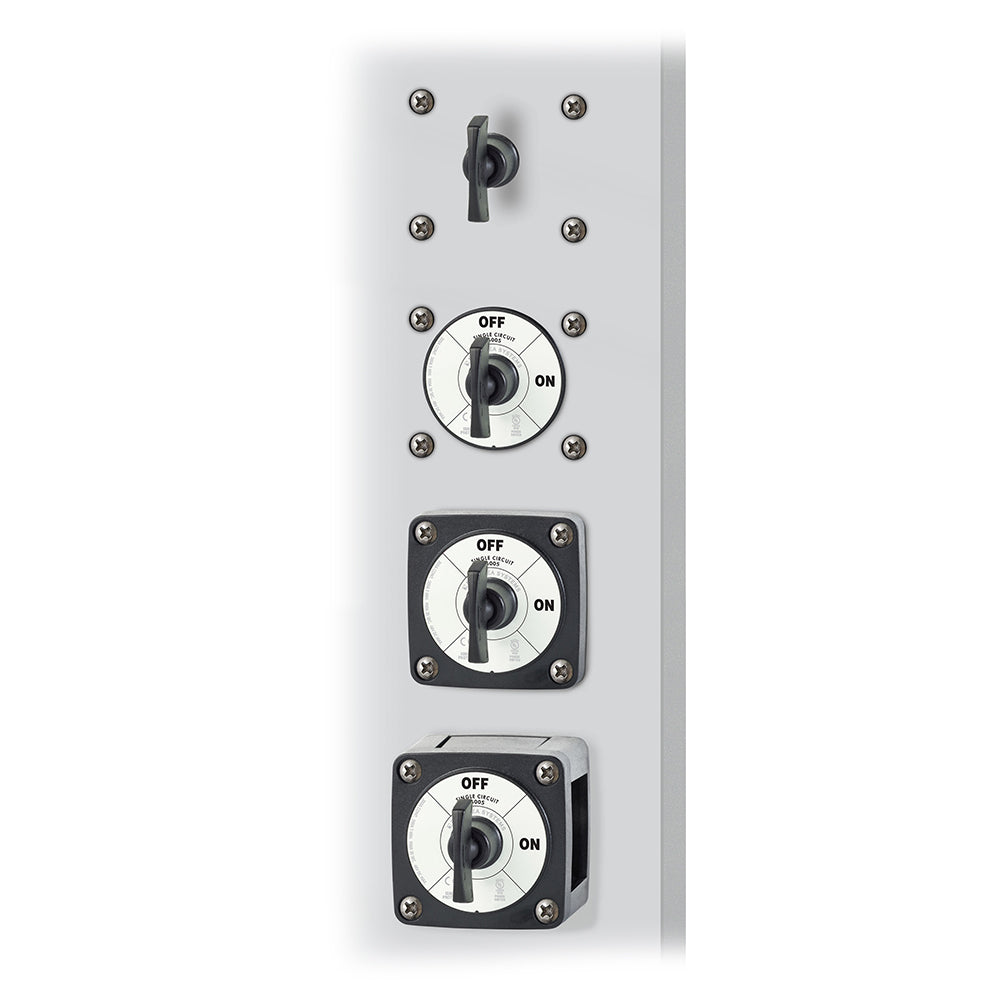

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: tSingle Circuit ON-OFF
Color:tBlack
Switch Positions:t2
Battery Combine:tNo
Alternator Field Disconnect: tNo
Maximum Voltage:t48V DC
Continuous Rating :t300A
Intermittent Rating :t500A (5 min)
Cranking Rating 10 sec: t1500A
Cranking Rating 1 min: t775A
Battery Inputs:t1
Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
Cable Size to Meet Ratings:t4/0 AWG (120mm²)
Mounting Holes: tAccept #10 Screw
Terminal Stud Size:t3/8"-16 (M10)
Terminal Stud Torque:t120 in-lb (13.56 Nm)
Weight:t0.62lb (0.28/ kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AFD: No
  • Continuous Amperage: 300a
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
  • UPC: 632085600525

Owner's Manual (pdf)
