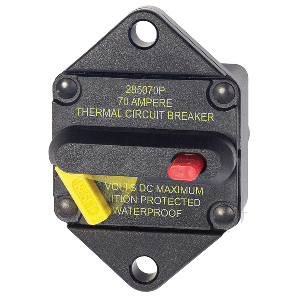

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085] 0.3 lb
Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series [7085]
285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
* Do not use for direct control of high inrush loads such as motor starting.
Specifications
Interrupt Rating t3,000A @ 48V DC*
Maximum Voltage Rating t48 Volts DC
Operating Temperature Range t-40°C to 85°C
Circuit Breaker Type tThermally Responsive Bi-metal blade
Circuit Breaker Class tType III - Switchable / Manual Reset - Trip Free
Terminal Stud Size tM6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque t50 in-lb
Mounting Holes tAccept 1/4" (M6) screw
Weight Lb (Kg) t0.33 lb (0.15 kg)
* AIC ratings achieved using SAE J1625
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Amperage: 70a
- Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs
- UPC: 632085070854
Brochure (pdf)
