Raymarine i40 Bidata Display System w/Thru-Hull Transducers [E70145] 5.55 lb

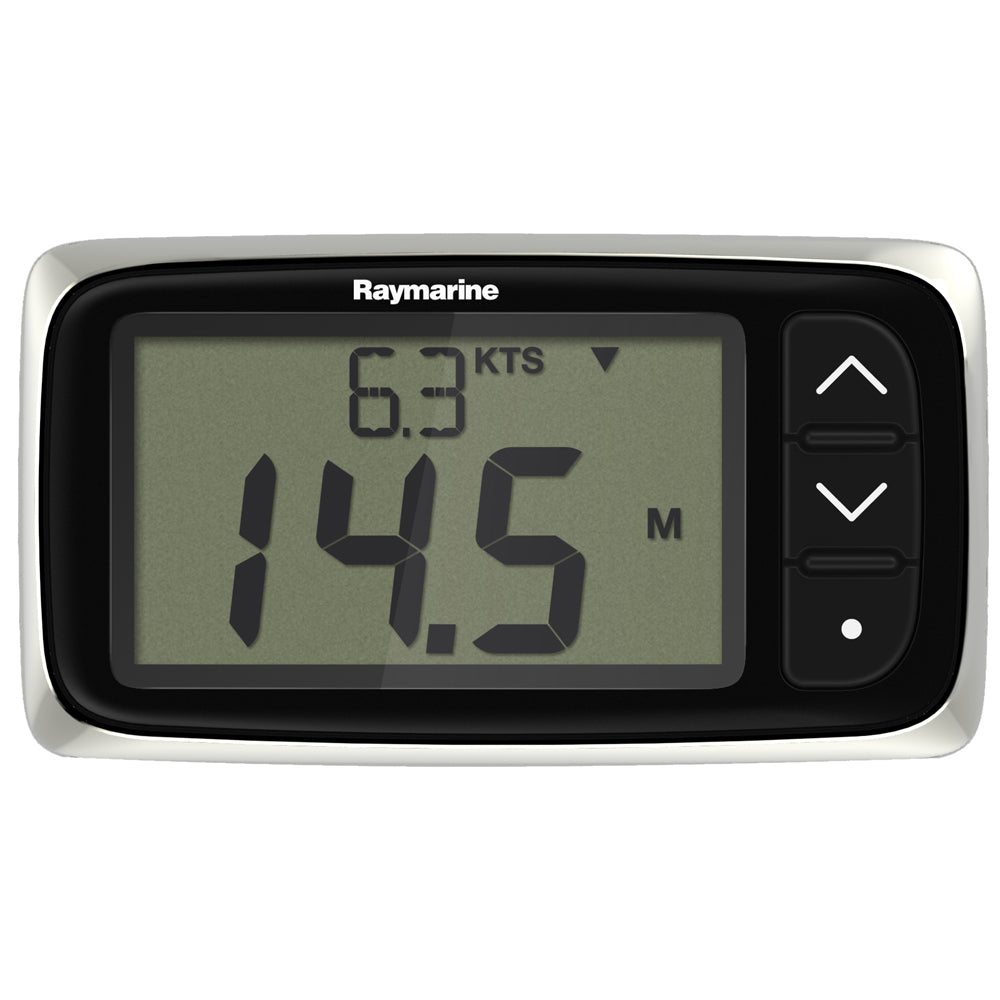

i40 Bidata Display w/Thru-Hull Transducers

Compact and feature-packed instruments, the i40 series instruments are smart choice for boaters looking high performance and great value.

The i40 series is simple to operate thanks to the use of just three control buttons, i40 has extra-large digits and razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions.

These SeaTalk® compatible instruments offer full integration with Raymarine autopilots and navigation equipment. The ultra-sleek design of i40 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. All i40 Instruments come with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i40 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 0.4 watts for superior run-time and excellent green credentials. The i40 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i40 Bidata Instrument
The Raymarine i40 Bidata offers all of the functionality of the Depth and Speed instruments combined in a single space-saving display. Like the other i40 Instruments, the Bidata is available as a complete system with depth and speed transducers or as a display-only solution for remote readout of depth and speed at another location.

The i40 Bidata's depth capabilities include easy-to-read displays of current speed, maximum speed, average speed, distance log, trip log as well as water temperature. Bidata also offers depth-related alarms and adjustments including shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm, and depth offset controls. Its speed capabilities include displays of current speed, maximum speed, average speed, distance log, trip log as well as water temperature.

i40 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• High contrast LCD displays with large digits for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• Simple SeaTalk networking with other Raymarine instruments, autopilots and MFDs.

• Built-in transducer connections simplify installation.

• Small form factor saves space at the helm without sacrificing features.

Supplied with:

i40 Bidata display
E26009 Low profile thru-hull depth transducer
E26008 Low profile thru-hull speed and temp transducer
i40 Suncover

Specifications:

• Shape: Rectangular
• Screen Size: 3.7"
• Instrument Function: Multifunction
• Box Dimensions: 5"H x 7"W x 27"L WT: 5.55 lbs
• UPC: 723193769164
