Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64" [02774] 0.25 lb
Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64" [02774] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length...

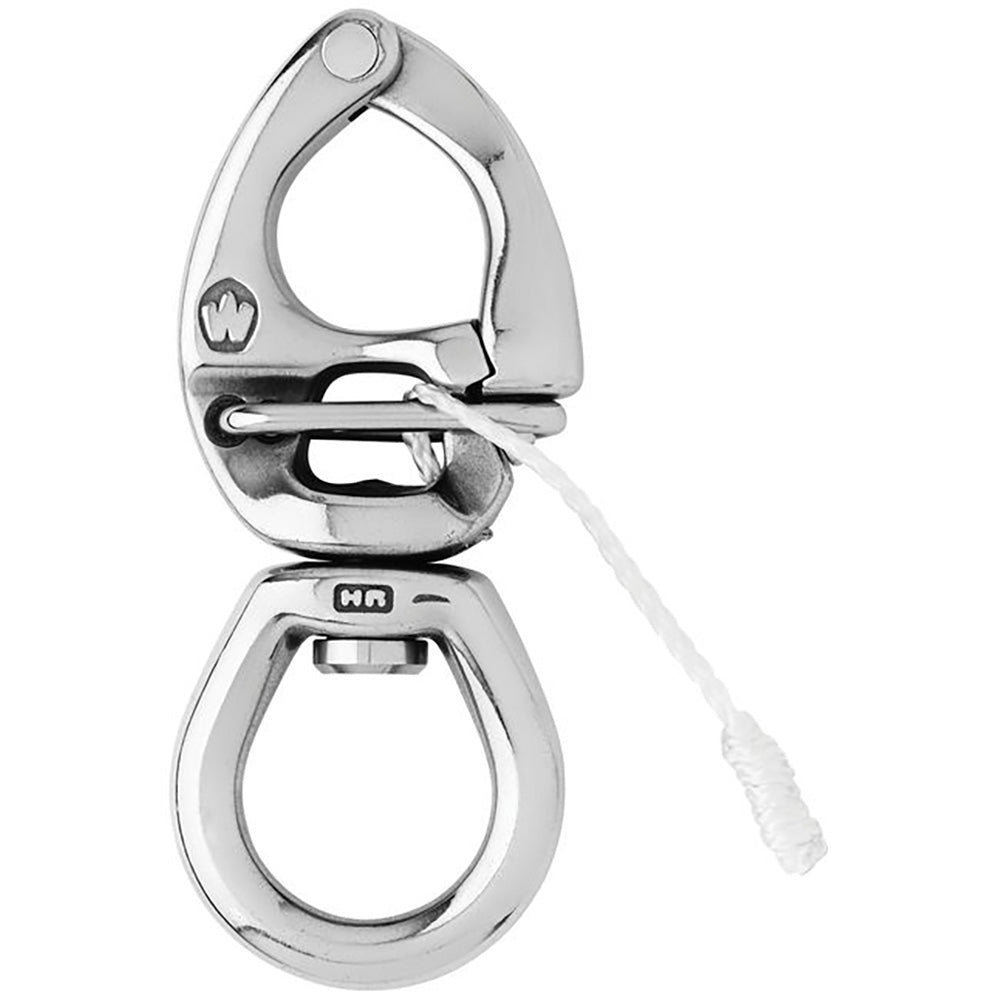

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2820 / (kg) 1280Â
- Breaking load: (lb) 4400 / (kg) 2000Â
- Weight: (lb) 0.22 / (g) 100

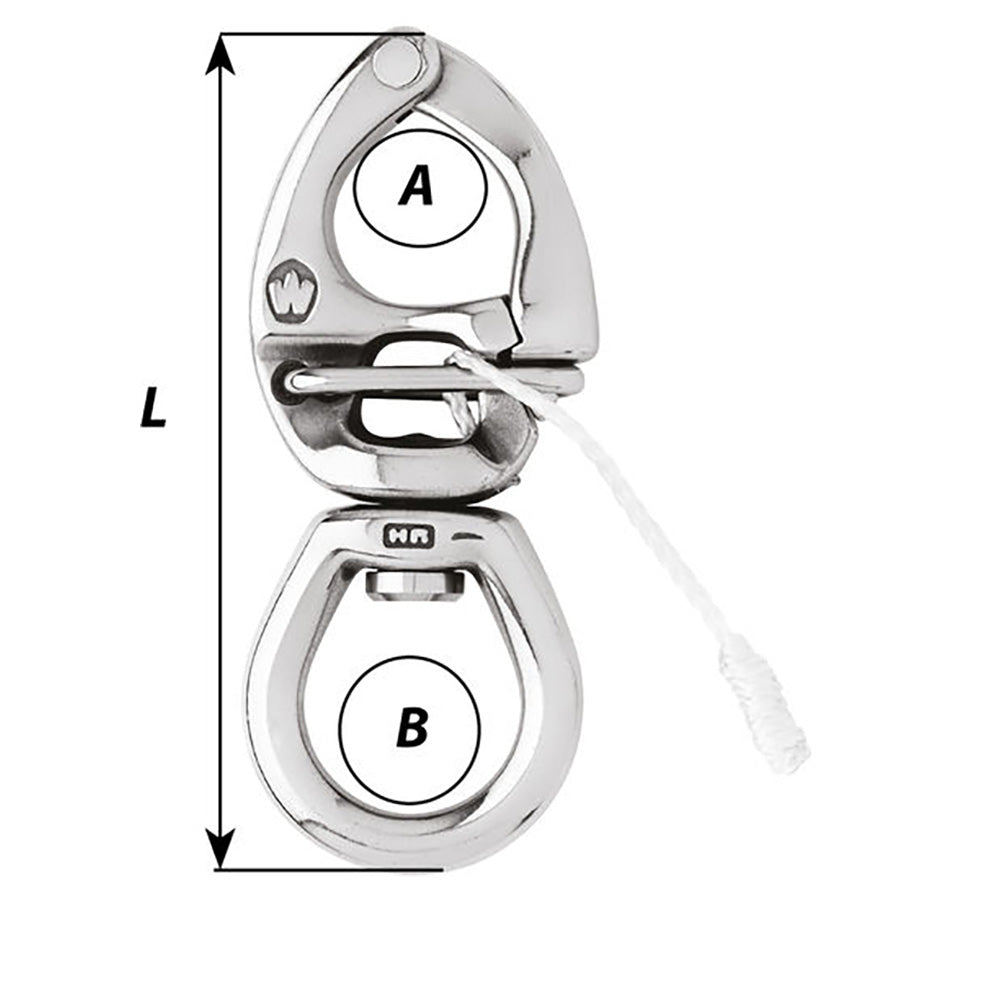

Dimensions:
- A; (inch) 5/8" / (mm) 16Â
- B: (inch) 29/32" / (mm) 23Â
- Length: (inch) 3 35/64" / (mm) 90Â
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
