Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" [01247] 1.2 lb
Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" [01247] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" [0...

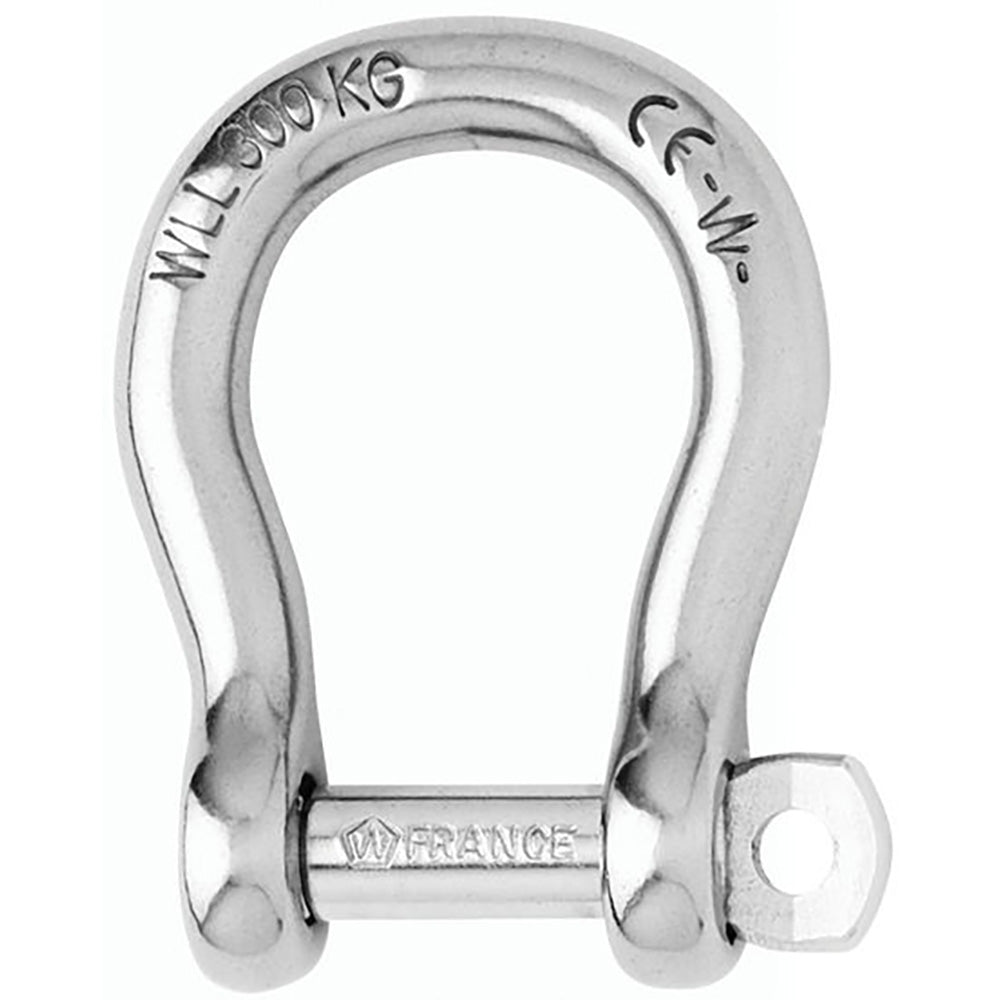

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"
Features:Â
- Bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part # 01247 is not self-locking Â
Applications:Â
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications: Â
- Materials: 316 stainless steel grade
- Working load: (lb) 7050 / (kg) 3200Â
- WLL: (lb) 4400 / (kg) 2000Â
- Breaking load: (lb) 22040 / (kg) 10000Â
- Weight: (lb) 1.19 / (g) 540

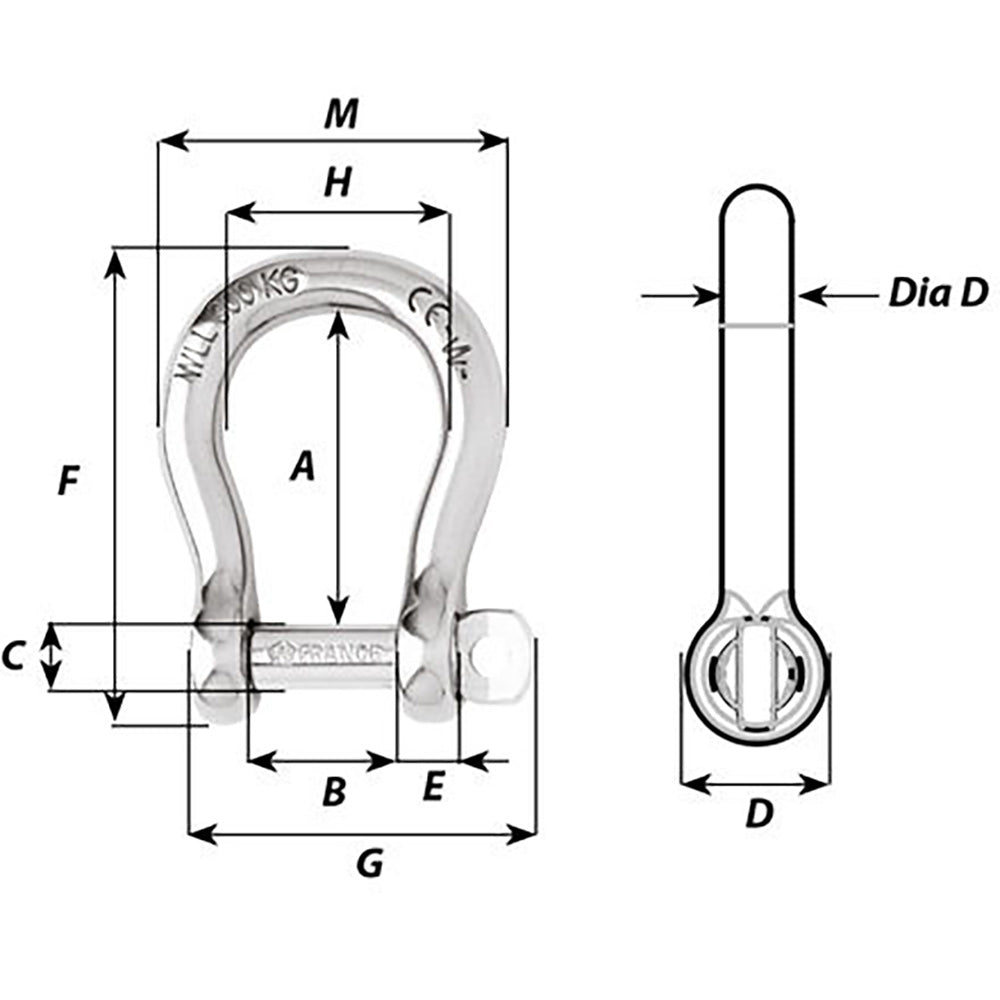

Dimensions: Â
- A: (inch) 2 3/4" / (mm) 70Â
- B: (inch) 1 17/64" / (mm) 32Â
- C: (inch) 35/64" / (mm) 14Â
- D: (inch) 1 17/64" / (mm) 14Â
- D diameter: (inch) 5/8" / (mm) 16Â
- E: (inch) 19/32" / (mm) 15Â
- M: (inch) 3 11/32" / (mm) 85Â
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
