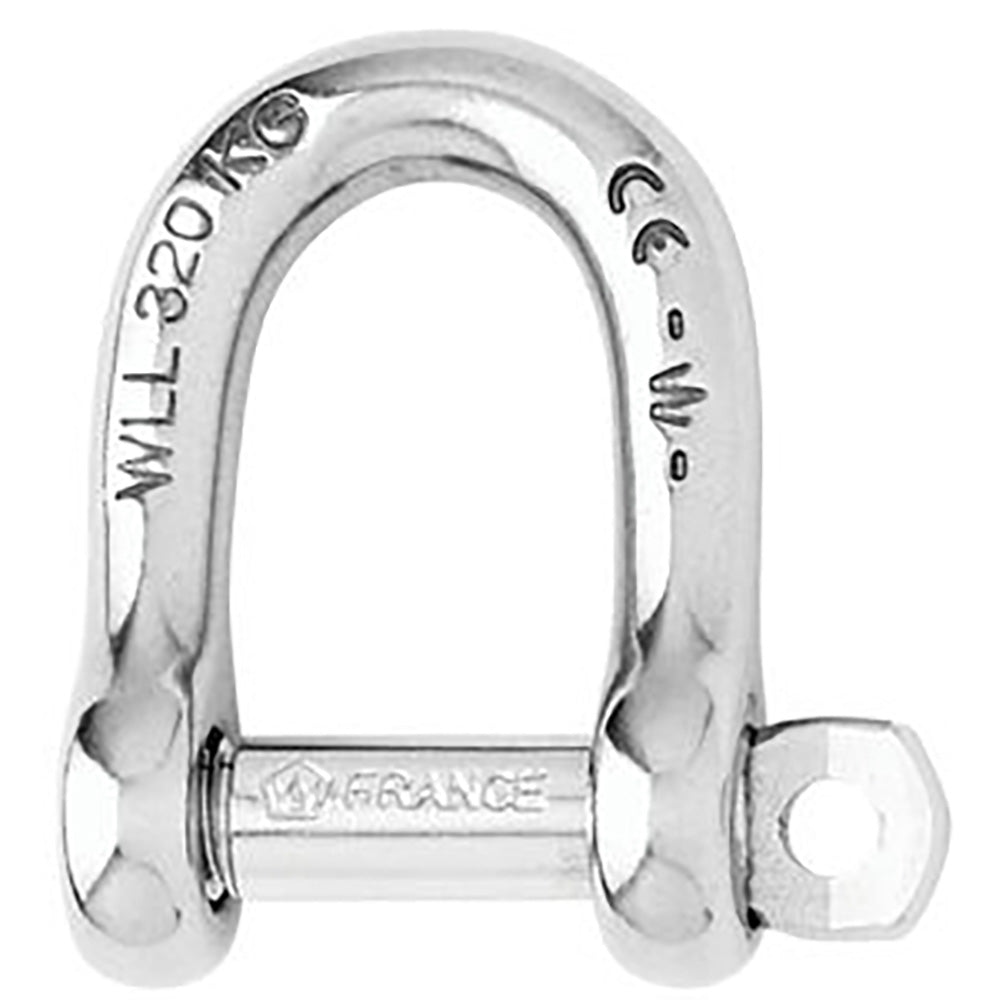

Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01207] 0.7 lb
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01207] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01...
Not Self-Locking D Shackle - 14mm Diameter - 9/16"
Features:Â
- D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part #01207 is not a self-locking D shackleÂ
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head
Specifications:Â
- Materials: 316 stainless steel grade
- Working load: (lb) 5290 / (kg) 2400Â
- WLL: (lb) 3520 / (kg) 1600Â
- Breaking load: (lb) 17630 / (kg) 8000Â
- Weight: (lb) 0.688 / (g) 312Â

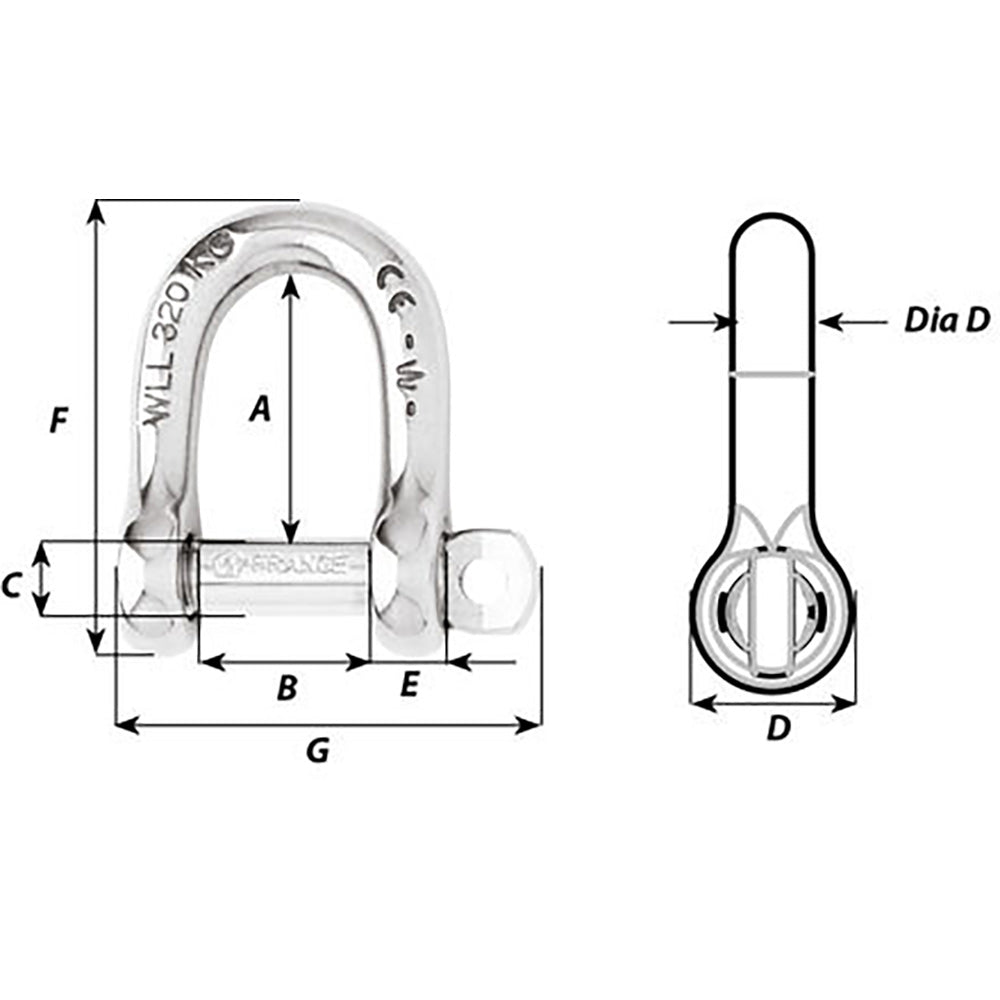

Dimensions:
- A: (inch) 1 27/32" / (mm) 47Â
- B: (inch) 1 7/64" / (mm) 28Â
- C: (inch) 35/64" / (mm) 14Â
- D: (inch) 1 7/64" / (mm) 28Â
- D diameter: (inch) 35/64" / (mm) 14Â
- E: (inch) 33/64" / (mm) 13Â
- F: (inch) 3 15/64" / (mm) 82Â
- G: (inch) 3 5/64" / (mm) 78Â
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
