Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4" [01263] 0.1 lb
Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4" [01263] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4&quo...

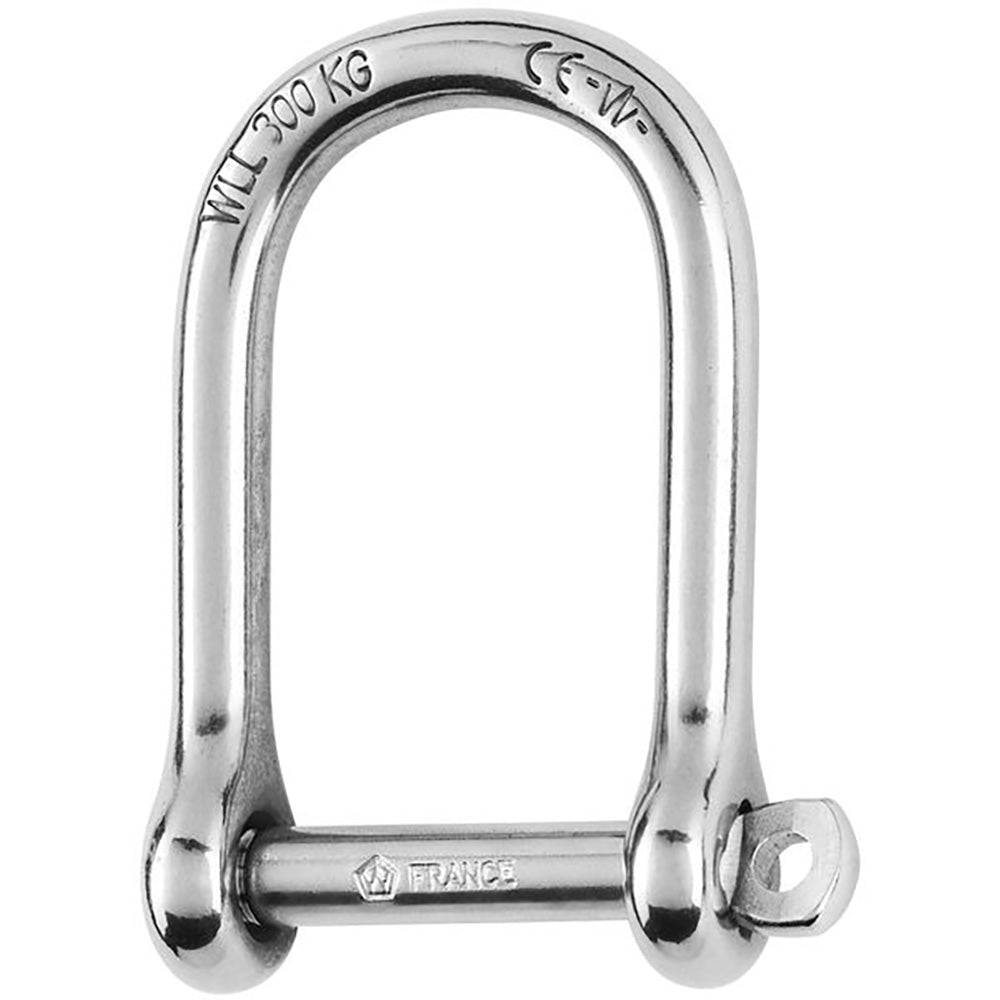

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications: Â
- For applications where a large opening shackle is required
Specifications: Â
- Materials 316 stainless steel grade
- Working load: (lb) 990 / (kg) 450Â
- WLL: (lb) 660 / (kg) 300Â
- Breaking load: (lb) 3300 / (kg) 1500Â
- Weight: (lb) 0.06 / (g) 27Â

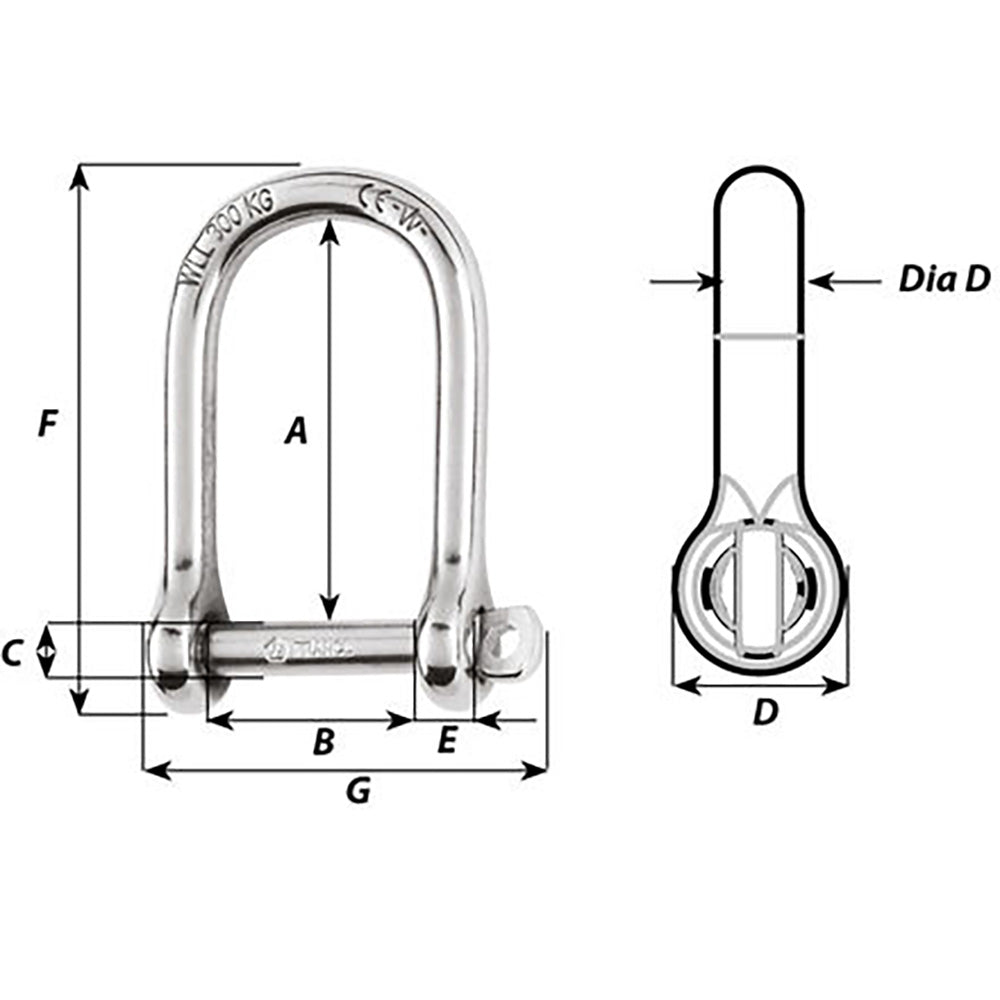

Dimensions:
- A: (inch) 1 21/32" / (mm) 42Â
- B: (inch) 1 / (mm) 25.5Â
- C: (inch) 15/64" / (mm) 6Â
- D: (inch) 35/64" / (mm) 14Â
- D diameter: (inch) 15/64" / (mm) 6Â
- E: (inch) 15/64" / (mm) 6Â
- F: (inch) 2 9/32" / (mm) 58Â
- G: (inch) 1 47/64" / (mm) 44Â
Caption:
- Working Load (WL): For nautical applications
- Â Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
