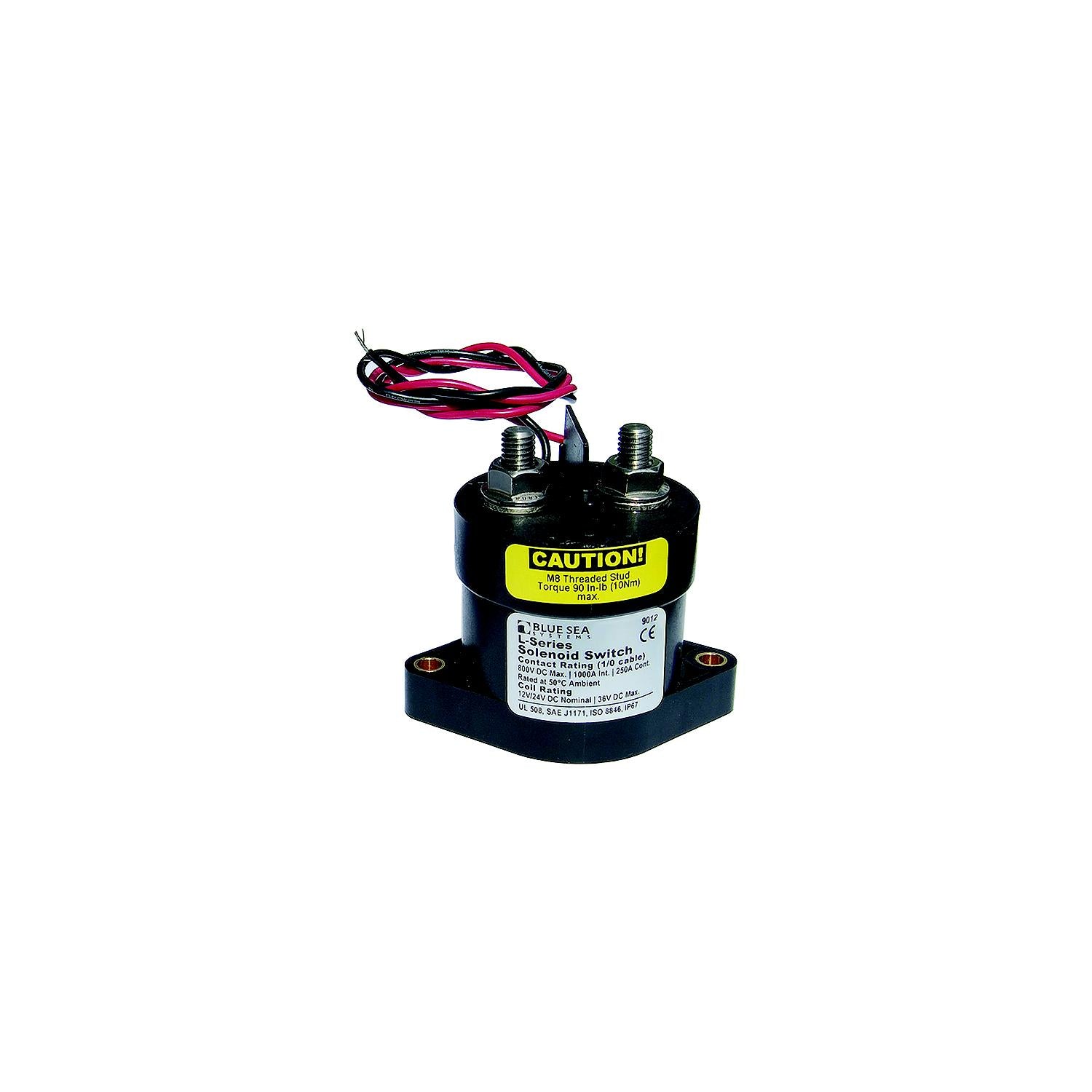

![Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012]](http://www.bgamarine.com/cdn/shop/files/20952XL.jpg?v=1706232905&width=1500)
Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012] 1.0 lb
Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Important! Please ensure to inspect this item before making your purchase. We're here to assist you anytime. Feel free to reach out if you have any questions or concerns; we're more than happy to help! Additionally, we offer financing options to make your purchase easier.
Delivery and Shipping
Delivery and Shipping
We're pleased to offer free shipping on all orders within the US. However, for oversize items, an additional shipping fee may apply. We strive to ensure timely and secure delivery of your products, partnering with top shipping services. For any inquiries regarding our shipping policy, feel free to contact our customer service team. Thank you for choosing BGA Marine!
Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A [9012]
L Solenoid Switch - 12-24VDC - 250A
Features:
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- Activated by an ON-OFF switch mounted anywhere
- Integrated coil control minimizes heating and amperage draw
- 450 Amp Class
- Designed for 12 or 24 Volt systems
- Ignition protected -- safe for installation aboard gasoline-powered boats
- Activated by a low amperage ON-OFF switch mounted anywhere
Specifications:
- Control Circuit Connection: 20 AWG Tinned Wire
- Nominal Voltage: 12V DC / 24V DC
- Coil Function: Normally Open
- Mounting: #10
- Operating Amperage Current: 3.6A when changing state
- Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
- Terminal Stud Torque: 90 in-lb (10.17 Nm)
- Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
- Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
- Cranking Rating 30 sec: 1,000A / 1000A DC
- Contact Form: SPST-NO
- Input Voltage: 9-36V DC
- Inrush Rating: 0.25 sec (10 repeats): 2000A
- Switching Cycles: 1,000,000
- Terminal Stud: Serrated Flange Nut
- Terminal Stud Length: 0.66" (16.76mm)
- Terminal Stud Size: 5/16" (M8)
- Weight: 1.00lb (0.45 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Continuous Amperage: 450a
- Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
- UPC: 632085090128
