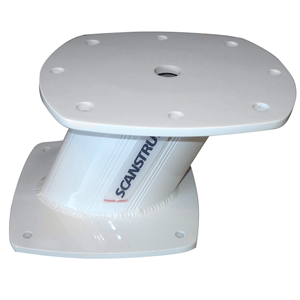

Scanstrut APT6003 Aluminum PowerTower Open Array Radar Mount - 6" Aft Leaning [APT6003] 6.0 lb

APT6003 Aluminum PowerTower® Open Array Radar Mount - 6" Aft Leaning

Scanstrut Aluminium PowerTower® has been designed and engineered to install your Open Array on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions.

Compatible with:

• Furuno - 1762, 1932, 1934, 1942, 1944, 1954, 851, DRS12A (6'), DRS12A (4'), DRS25A (4'), DRS25A (6'), DRS4A, DRS6A / DRS6A X CLASS, DRS6A-NXT radars
• Garmin - GMR 1224 xHD2, 1226 xHD2, 2524 xHD2, 2526 xHD2, 404, 406, 424 xHD2, 624 xHDS2, 626 xHD2 radars
• JRC - JMA 2344 / 5106 / 5206 (4') and JMA 2344 / 5106 / 5206 (6') radars
• Navman - 8000 Series (8084/8120) 4" radars
• Onwa - KRA-3002/4001 radars
• Raymarine - 5S / 9S / RA1048HD / RA1048SHD, 7S / 11S / RA1072HD / RA1072SHD, Cyclone 3'/4'/6', Magnum 4' 4kW/12kW, Magnum 6' 4kW/12kW radars
• Simrad - HALO 3/4/6 Pulse radars
• Sitex - MDS - 10 (4'), 10 (5') and RADARpc - 3/54.5 radars

Features:

• Designed to fit the most up to date open array radars from Garmin, Raymarine, Simrad and Furuno
• Pre-drilled mounting holes allow the open array to fasten straight to the PowerTower®
• Constructed from the best marine-grade aluminium
• Paint finishes complies with our unique 4 step marine paint system

Technical Specifications:

• Radar Type - Open Array
• Material - Aluminum
• Height - 5.91" (150mm)
• Mounting Type - Aft leaning - 25°

In the Box:

• Mount
• Mounting hardware (excluding screws/bolts)
• Installation manual

*Sold as an Individual

Specifications:

• Construction: Aluminum
• Type: Aft Leaning Mount
• Height: 5.91
• Box Dimensions: 8"H x 13"W x 13"L WT: 6 lbs
• UPC: 5060114796447
