Veratron Navigation Kit Plus f/Sailboats [A2C1352150003] 14.4 lb

Navigation Kit Plus for Sailboats

Complex boats need a smart solution. And we have it. VDO Marine OceanLink® display is the only product on the market able to interpret CAN, NMEA 2000® and analog signals without any additional external device.

Safety, performance, entertainment.  VDO Marine Navigation Kit and Navigation Kit Plus is the solution! Our Navigation Kits will become essential crew members which ensure you top performance in the open sea, even in the most extreme situations.

All in one box All you need is in one box including wiring harness and terminators. All products are REACH and RoHS compliant and NMEA 2000® certified.

NAVSENSOR (INCLUDED ONLY IN THE KIT NAVIGATION PLUS)

The multifunctional AcquaLink™ NavSensor offers an inertial sensor with a GNSS receiver module to provide the accurate readings of speed of travel as well as pitch & roll. Compass readings can be displayed electronically thanks to the embedded Fluxgate compass, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.

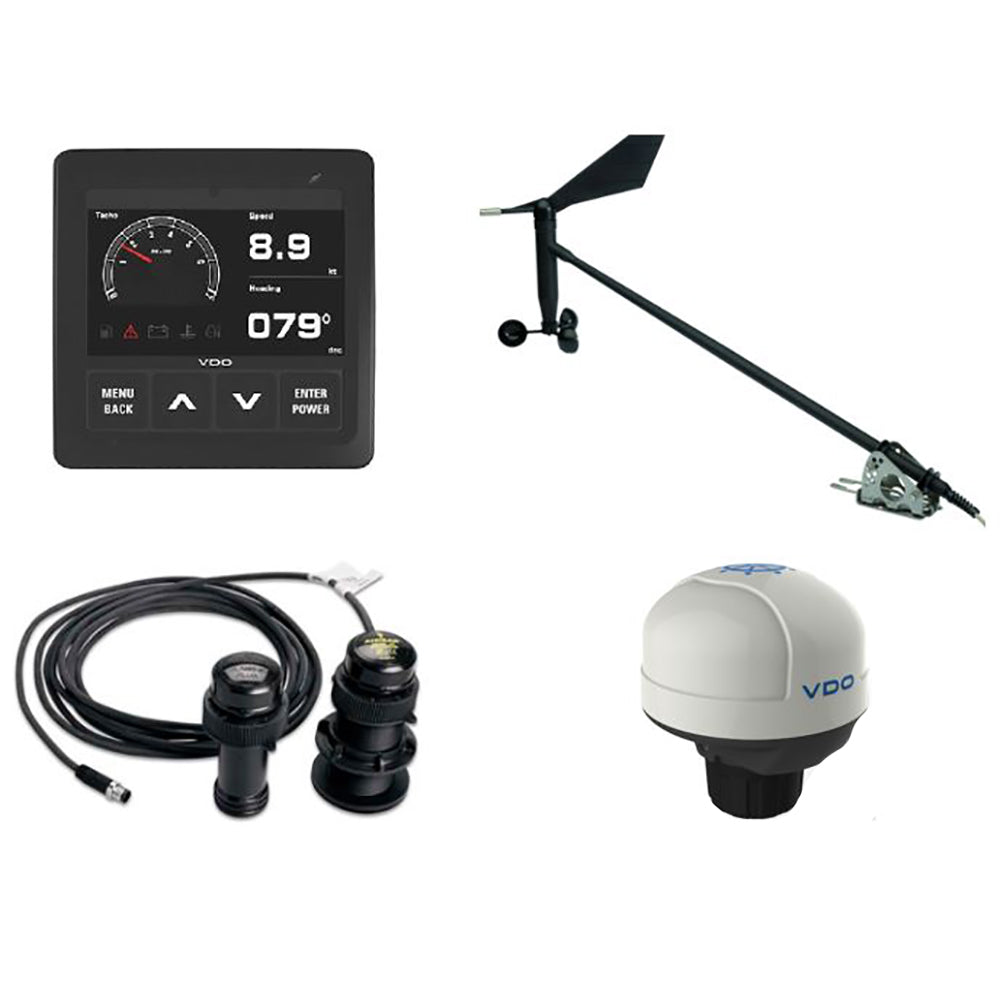

Navigation Kit Plus includes:

• 1x OceanLink 4.3 TFT Display/Gateway - Black
• 1x NMEA 2000 Wind Sensor
• 1x Nav Sensor
• 1x  Triducer Airmar Sensor (Speed/Depth/Water Temp)
• 1x 30m NMEA 2000 backbone (mast) cable
• 3x 6m NMEA 2000 drop cable
• 1x NMEA 2000 terminator (female)
• 1x NMEA 2000 terminator (inline)
• 3x NMEA 2000 T-splitter

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Transducer Type: Thru-Hull
• Shape: Rectangular
• Screen Size: 4.3"
• Instrument Function: Multifunction
• Box Dimensions: 7"H x 16"W x 31"L WT: 14.4 lbs
• UPC: 7640178728806
